Please contact Cristal Controls technical support before applying an update.
You may need to adjust settings on your new software version.

Key improvements released in Jasper 2.41

Adds a new Polygon control for the floor plans

The Polygon control enables the addition of custom shapes to the floor plan, facilitating the definition or identification of specific spaces or rooms. When associated with a variable, the Polygon's color can dynamically be adjusted based on its value.

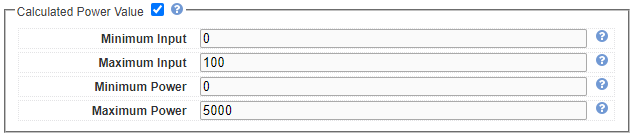

Allows the calculation of the power used by load shedding directly in Jasper

Allows calculating the power value when the BACnet power reading object does not directly represent a power. For example, the BACnet power reading object represents a volt value coming from a current transformer (CT) or a percentage value.

Adds highlight option to the Simple button controls of the floor plans

Enables this option to set the control to have a white border when the value of the write variable is equal to the value of the read variable.

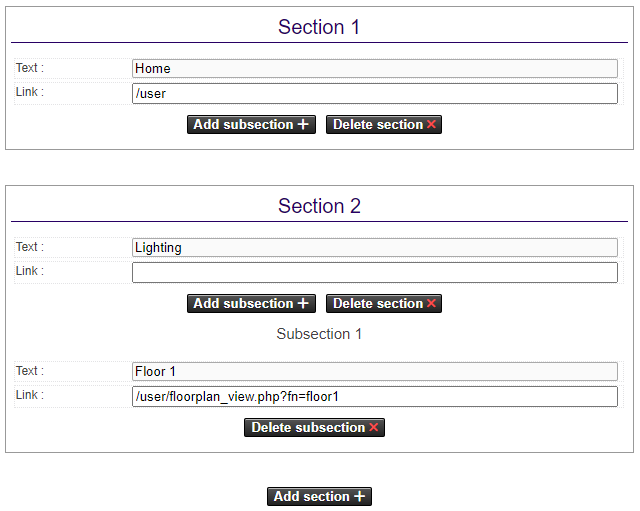

Allows the configuration of user menu and home page

This page is used to configure the home page and the user menu (orange menu). Each section represents a menu tab and is displayed in order of addition. A section may have one or more sub-sections.

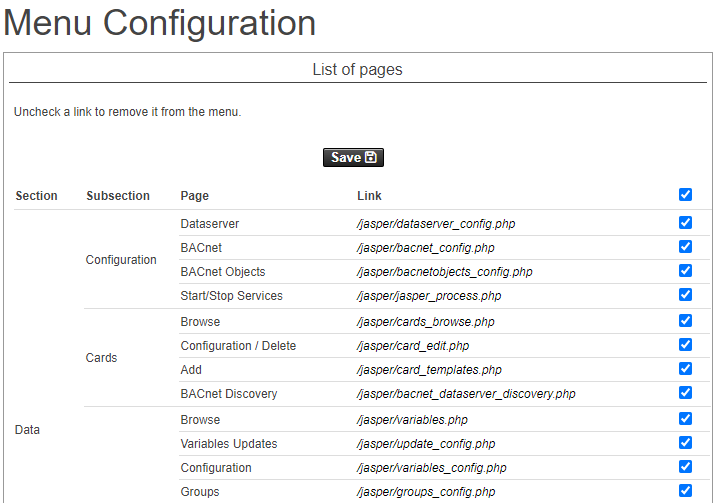

Adds a new configuration page allowing to hide/show certain web page menus

This page allows you to hide one or more menu pages of the Jasper standard menu. To hide a menu, simply uncheck it in the list using the checkbox in the last column.

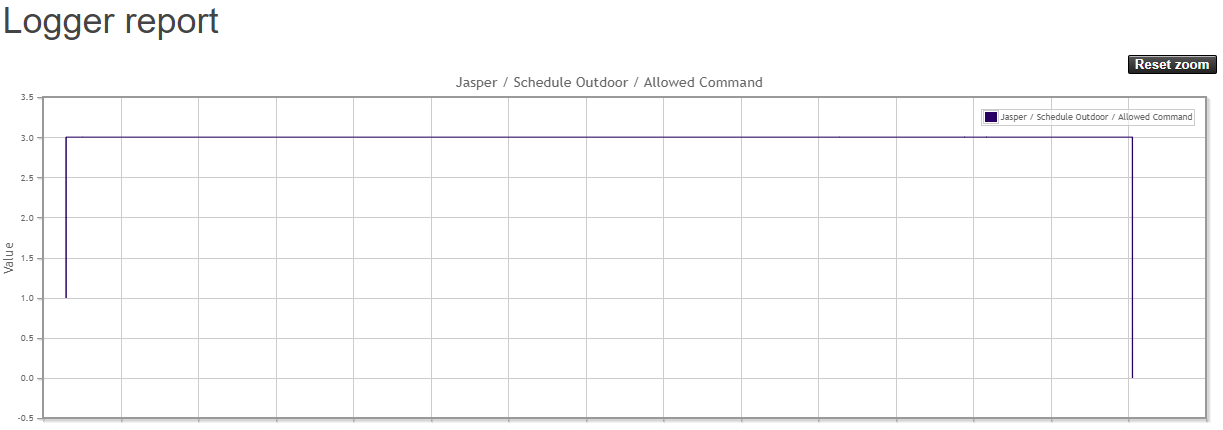

Allows logging of Schedule / Allowed Command, Alarm / Source and Light Control variables in the trending report

Enables logging of Schedule / Allowed Command variables, as well as Alarm / Source variables and Light Control variables in the trending report.

Improves appearance of the Simple button controls of the floor plans

Minor appearance improvement of the Simple Button control for the floor plans.

Fixes use of Schedule / Allowed Command on the floor plans

Correction allowing the proper use of Schedule / Allowed Command variables in the floor plan.

Fixes Paste Special with units for Input Text controls on floor plans

Correction of a problem when the Paste Special does not copy the Units of Input Text controls in the floor plan.

Fixes vertical scrollbar of floor plan list

Fix the vertical scrollbar in the floor plans list to ensure the last plans are always displayed properly.

Support Xbee 3 radio module

Improve support for the latest Xbee 3 wireless module.
